A40Y高溫安全閥
一、帶散熱器安全閥 產品概述
高溫帶散熱器安全閥適用于工作溫度“C型"≤425℃；“I型"≤500℃；“V型"≤500℃；的蒸汽等介質設備或管路上，作為超壓保護裝置。帶散熱器安全閥連接法蘭標準按JB/T……94系列1、系列2。
|
|
|---|---|

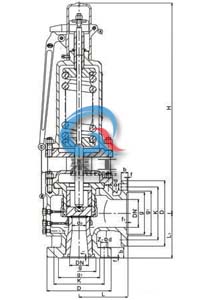

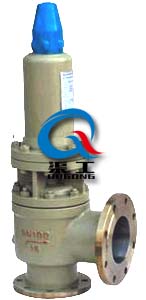

| A40Y帶散熱器安全閥 | A40Y帶散熱器安全閥 (外形結構尺寸) |
二、帶散熱器安全閥 主要零件材料
| NO | 零件名稱 | C型材料 | I型材料 | V型材料 |
|---|---|---|---|---|
| 1 | 閥體 | WCB | ZG1Cr5Mo | ZG15Cr1Mo1V |
| 2 | 閥座 | 2Cr13 | 1Cr18Ni9Ti | 12Cr1MoVA |
| 3 | 調節圈 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 4 | 閥瓣 | 2Cr13 | 17-4PH | 17-7PH |
| 5 | 導向套 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 6 | 散熱器 | ZG230-450 | ZG230-450 | ZG230-450 |
| 7 | 閥蓋 | ZG230-450 | ZG230-450 | ZG230-450 |
| 8 | 彈簧 | 50CrVA | 50CrVA | 50CrVA |
三、帶散熱器安全閥 連接尺寸
| 型號 |
公稱 通徑 |
do | D | K | g | g1 | b | f | f1 | Z-?d | DN1 | D1 | K1 | g3 | g2 | b1 | f | f1 | z1-d1 | L | L1 | ≈H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A48Y-16C A48Y-16I A48Y-16V |
40 | 25 | 150 | 110 | / | 85 | 18 | 3 | / | 4-18 | 50 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 120 | 115 | 540 |
| 50 | 32 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 65 | 185 | 145 | / | 120 | 20 | 3 | / | 4-18 | 135 | 120 | 618 | |
| 65 | 40 | 185 | 145 | / | 120 | 20 | 3 | / | 4-18 | 80 | 200 | 160 | / | 135 | 20 | 3 | / | 8-18 | 160 | 140 | 710 | |
| 80 | 50 | 200 | 160 | / | 135 | 20 | 3 | / | 8-18 | 100 | 220 | 180 | / | 155 | 22 | 3 | / | 8-18 | 160 | 150 | 730 | |
| 100 | 65 | 220 | 180 | / | 155 | 20 | 3 | / | 8-18 | 150 | 285 | 240 | / | 210 | 24 | 3 | / | 8-23 | 225 | 175 | 892 | |
| 150 | 100 | 285 | 240 | / | 210 | 24 | 3 | / | 8-23 | 200 | 340 | 295 | / | 265 | 26 | 3 | / | 12-23 | 240 | 235 | 1135 | |
| 200 | 125 | 340 | 295 | / | 265 | 26 | 3 | / | 12-23 | 250 | 405 | 355 | / | 320 | 30 | 3 | / | 12-26 | 290 | 210 | 1135 | |
|
A48Y-40 A48Y-40I A48Y-40V |
25 | 16 | 115 | 85 | 58 | 65 | 16 | 2 | 4 | 4-14 | 32 | 140 | 100 | / | 78 | 18 | 2 | / | 4-18 | 110 | 95 | 429 |
| 32 | 20 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 40 | 150 | 110 | / | 85 | 18 | 3 | / | 4-18 | 115 | 100 | 421 | |
| 40 | 25 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 50 | 165 | 125 | / | 100 | 20 | 3 | / | 4-18 | 120 | 115 | 540 | |
| 50 | 32 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 65 | 185 | 145 | / | 120 | 20 | 3 | / | 4-18 | 135 | 120 | 618 | |
| 65 | 40 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 80 | 200 | 160 | / | 135 | 20 | 3 | / | 8-18 | 160 | 140 | 710 | |
| 80 | 50 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 100 | 220 | 180 | / | 155 | 22 | 3 | / | 8-18 | 160 | 150 | 730 | |
| 100 | 65 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 150 | 285 | 240 | / | 210 | 24 | 3 | / | 8-23 | 225 | 175 | 892 | |
| 150 | 100 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 200 | 340 | 295 | / | 265 | 26 | 3 | / | 12-23 | 240 | 235 | 1135 | |
| 200 | 125 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 250 | 405 | 355 | / | 320 | 30 | 3 | / | 12-26 | 290 | 310 | 1135 | |
|
A48Y-64 A48SB-64 A48Y-64I A48SB-64I A48Y-64V A48SB-64V |
25 | 16 | 140 | 100 | 58 | 78 | 22 | 2 | 4 | 4-18 | 32 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 110 | 100 | 429 |
| 32 | 20 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 40 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 130 | 110 | 421 | |
| 40 | 25 | 170 | 125 | 76 | 95 | 24 | 3 | 4 | 4-23 | 50 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 135 | 120 | 540 | |
| 50 | 32 | 180 | 135 | 88 | 105 | 26 | 3 | 4 | 4-23 | 65 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 160 | 130 | 618 | |
| 50 | 32 | 180 | 135 | 88 | 105 | 26 | 3 | 4 | 4-23 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 160 | 145 | 710 | |
| 65 | 40 | 205 | 160 | 110 | 130 | 28 | 3 | 4 | 8-23 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 175 | 160 | 710 | |
| 80 | 50 | 215 | 170 | 121 | 140 | 30 | 3 | 4 | 8-23 | 100 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 175 | 160 | 730 | |
| 100 | 65 | 250 | 200 | 150 | 168 | 32 | 3 | 4.5 | 8-26 | 125 | 270 | 220 | 176 | 188 | 28 | 3 | 4.5 | 8-25 | 220 | 200 | 800 | |
| 100 | 65 | 250 | 200 | 150 | 168 | 32 | 3 | 4.5 | 8-26 | 150 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 220 | 200 | 892 | |
| 150 | 100 | 345 | 280 | 204 | 240 | 38 | 3 | 4.5 | 8-34 | 200 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 280 | 280 | 1135 | |
| 200 | 125 | 405 | 345 | 260 | 300 | 44 | 3 | 4.5 | 12-36 | 250 | 450 | 385 | 313 | 345 | 42 | 3 | 4.5 | 12-34 | 300 | 295 | 1135 | |
|
A48Y-100 A48SB-100 A48Y-100I A48SH-100I A48Y-100V A48SB-100V |
25 | 16 | 140 | 100 | 58 | 78 | 24 | 2 | 4 | 4-18 | 32 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 110 | 100 | 429 |
| 32 | 20 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 40 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 130 | 110 | 421 | |
| 40 | 25 | 170 | 125 | 76 | 95 | 26 | 3 | 4 | 4-23 | 50 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 135 | 120 | 540 | |
| 50 | 32 | 195 | 145 | 88 | 112 | 28 | 3 | 4 | 4-26 | 65 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 160 | 130 | 618 | |
| 50 | 32 | 195 | 145 | 88 | 112 | 28 | 3 | 4 | 4-26 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 160 | 145 | 710 | |
| 65 | 32 | 220 | 170 | 110 | 138 | 32 | 3 | 4 | 8-26 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 175 | 160 | 710 | |
| 80 | 40 | 230 | 180 | 121 | 148 | 34 | 3 | 4 | 8-26 | 100 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 175 | 160 | 730 | |
| 100 | 50 | 265 | 210 | 150 | 172 | 38 | 3 | 4.5 | 8-30 | 125 | 270 | 220 | 176 | 188 | 28 | 3 | 4.5 | 8-25 | 220 | 200 | 800 | |
| 100 | 50 | 265 | 210 | 150 | 172 | 38 | 3 | 4.5 | 8-30 | 150 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 220 | 200 | 892 | |
| 150 | 80 | 355 | 290 | 204 | 250 | 46 | 3 | 4.5 | 12-34 | 200 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 280 | 280 | 1135 | |
| 200 | 125 | 430 | 360 | 260 | 312 | 54 | 3 | 4.5 | 12-36 | 250 | 450 | 385 | 313 | 345 | 42 | 3 | 4.5 | 12-34 | 300 | 295 | 1135 | |
| A48SH-40 | 50 | 32 | 160 | 125 | 88 | 105 | 38 | 3 | 4 | 4-18 | 80 | 195 | 160 | / | 135 | 20 | 3 | / | 8-18 | 124 | 137 | 525 |
| A48TH-100 | 50 | 32 | 195 | 145 | 88 | 112 | 50 | 3 | 4 | 4-26 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4.5 | 8-18 | 160 | 145 | 580 |
| A48SB-160 | 80 | 40 | 260 | 205 | 121 | 168 | 65 | 15 | 4 | 8-30 | 150 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-25 | 215 | 210 | 1175 |
注：YA48TH-100 DN50不帶散熱器。
四、帶散熱器安全閥 訂貨須知
訂貨時請?zhí)顚憽兑?guī)格書》或注明以下內容：
1、若訂貨前未選定型號，請向我們提供使用參數:1.公稱通徑，2.流體性質（包括公稱壓力、溫度、粘度或酸堿性），3.閥體、閥芯材料。
2、若已經由設計單位選定我公司的帶散熱器安全閥產品型號，請按型號直接向我司訂購；
